Dialogflow CX

This article will demonstrate how to integrate Dialogflow CX with Voximplant for both incoming and outgoing calling.

Dialogflow, a virtual agent, facilitates conversations with your end-users. It employs a natural language understanding module that comprehends the intricacies of human language.

Dialogflow CX is an advanced agent type that is well-suited for large or extremely complex agents.

Here, we also provide instructions on how to enable Dialogflow CX’s telephony integration features within the Dialogflow CX console (as of March 2021), including:

  • No speech timeout

  • DTMF interaction

  • Playing pre-recorded messages

  • Live Agent Handoff

Dialogflow CX, Google Cloud’s latest interface for Dialogflow, is designed specifically for customer experience applications. Dialogflow ES users (formerly known as Dialogflow) are advised to refer to our Dialogflow ES guide for more information.

Already have one-click integration and want to go straight to outgoing calling?

Scroll down to the last two sections: Outgoing calling and Call lists

This article assumes you already have a Dialogflow CX agent configured. See Google Cloud’s documentation for details on using Dialogflow CX. We recommend examining Dialogflow’s Healthcare pre-built agent, which includes many telephony features.

One-click telephony integration

Copy URL

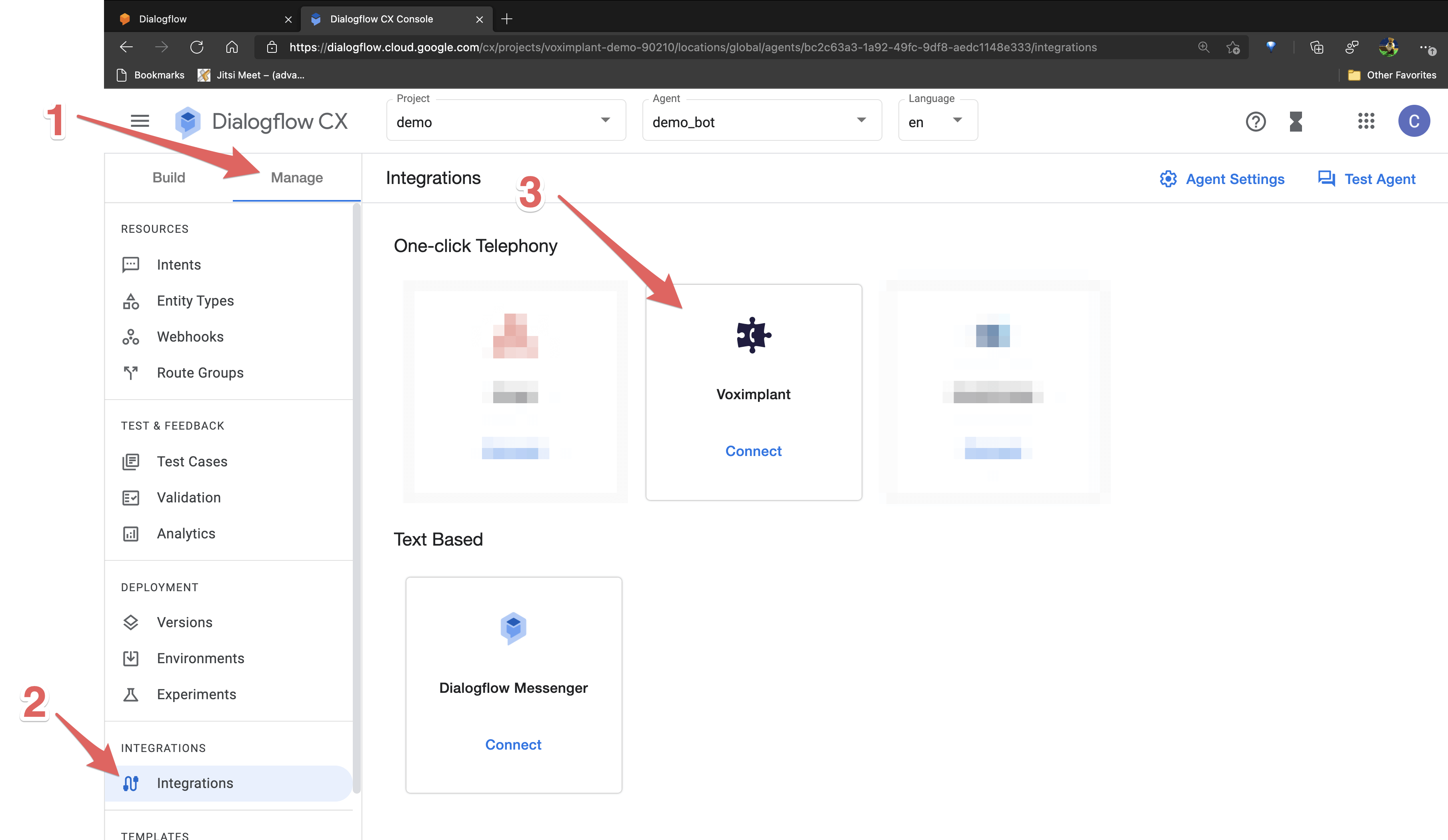

The first step to connect Dialogflow CX to Voximplant is using the One-click Telephony integration. Go to the Google Cloud Dialogflow CX console and select your agent. Then from the Manage menu, select Integrations, and click Connect on Voximplant:

Go to Google Cloud Dialogflow CX console

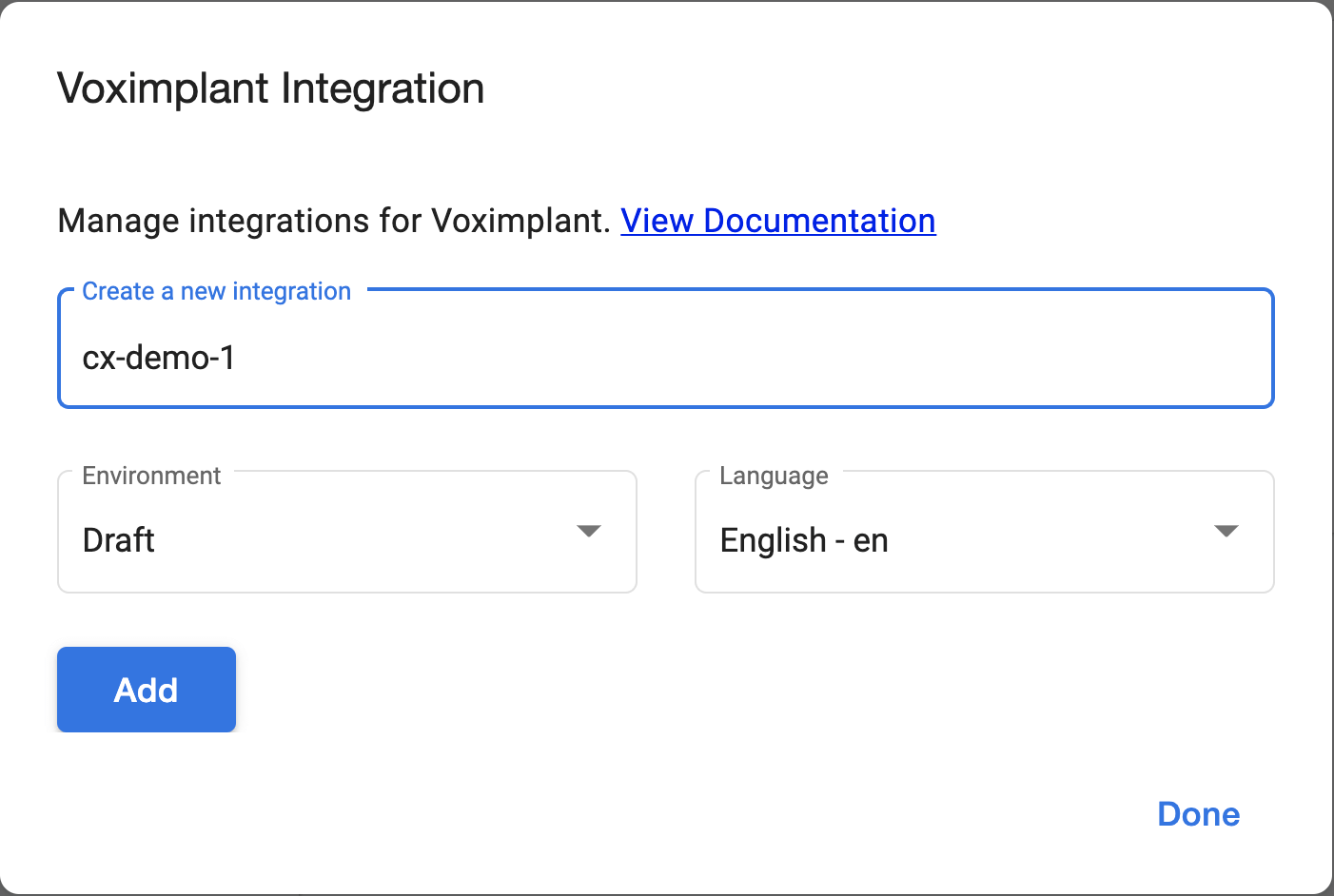

You are prompted to specify an integration name with a language and environment.

Create a new integration

Note that you can have multiple independent integrations with Voximplant using different parameters.

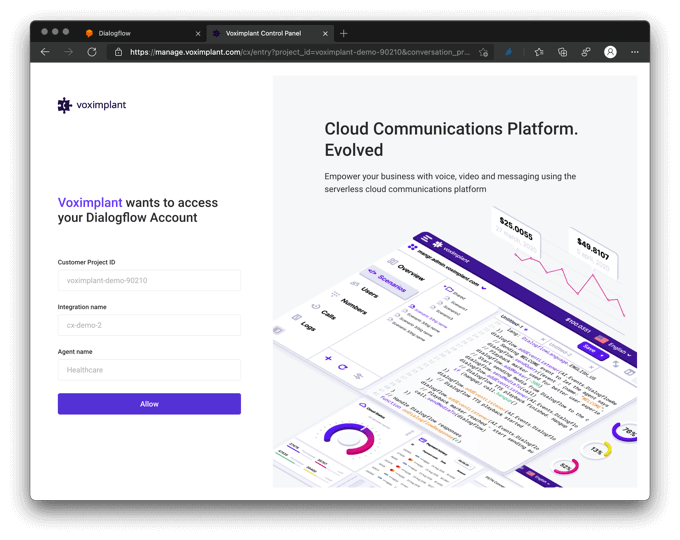

You then need to give Voximplant permission to access your Dialogflow account. If you are not already signed into Voximplant, you will be prompted to sign in or create an account.

Sign in or create an account

Once you are signed in, you have the option to select an existing phone number from your Voximplant account or purchase a new one. However, if you choose to use an existing phone number, please ensure that it is not already associated with any applications.

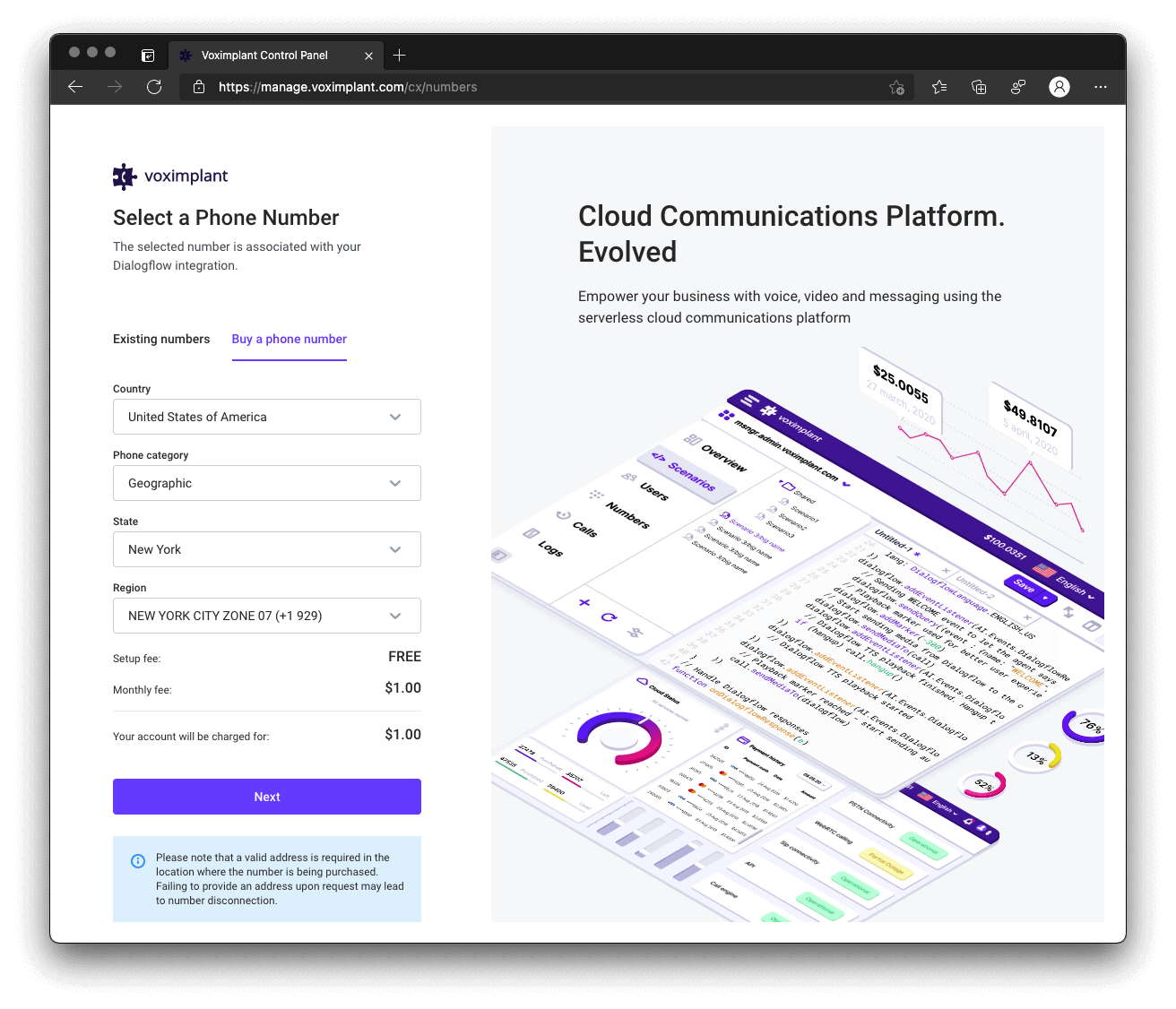

When purchasing a new phone number, choose the appropriate settings.

Purchase a phone number

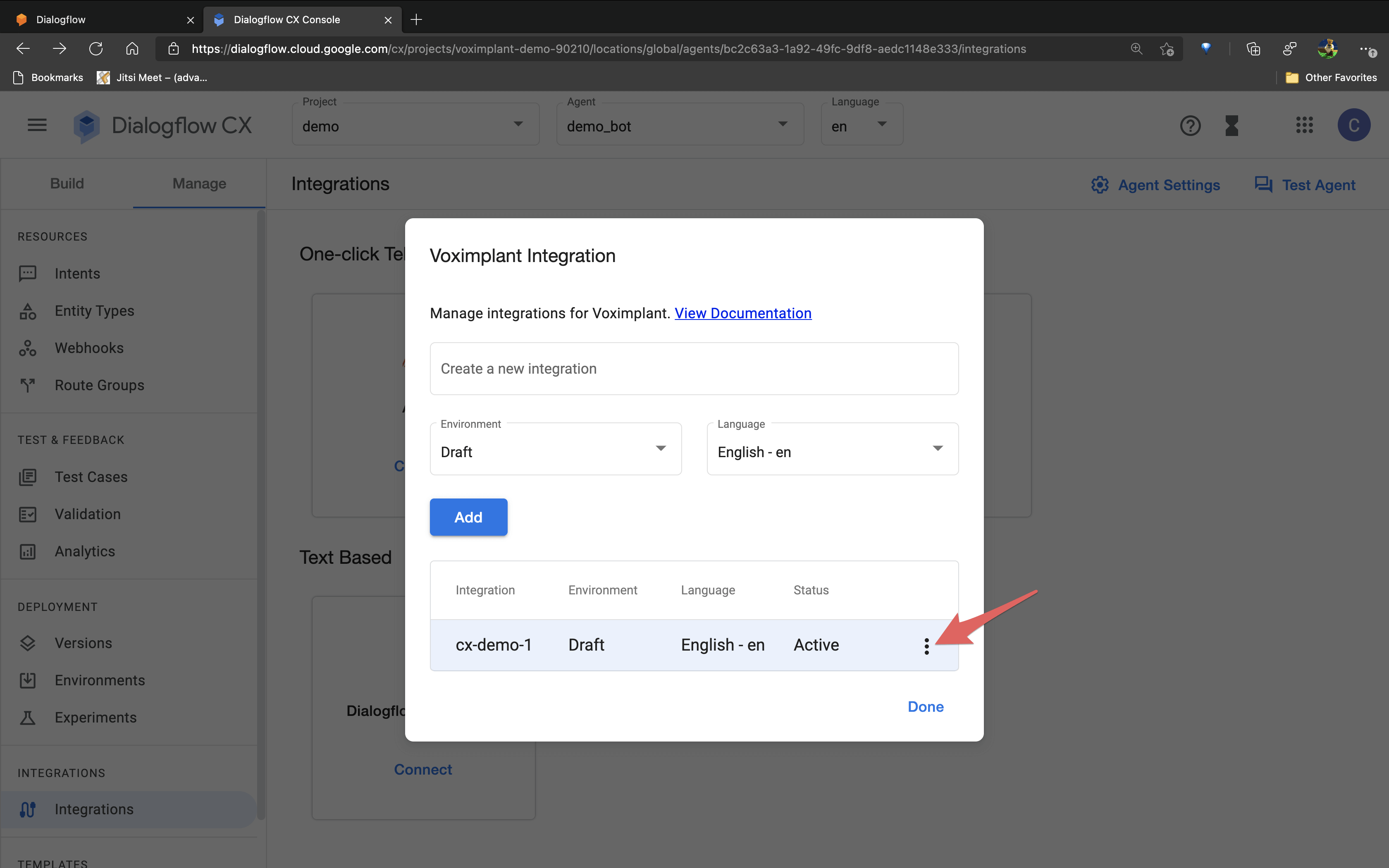

Once you select your phone number you are directed back to the Dialogflow CX console:

Manage the integration

From here, you can use the three-dots menu and choose Manage to log in to the Voximplant Management console or Disconnect to destroy the connection. If you had issues or stopped during the One-click integration procedure, you also have the option to resume the integration process from where you left off.

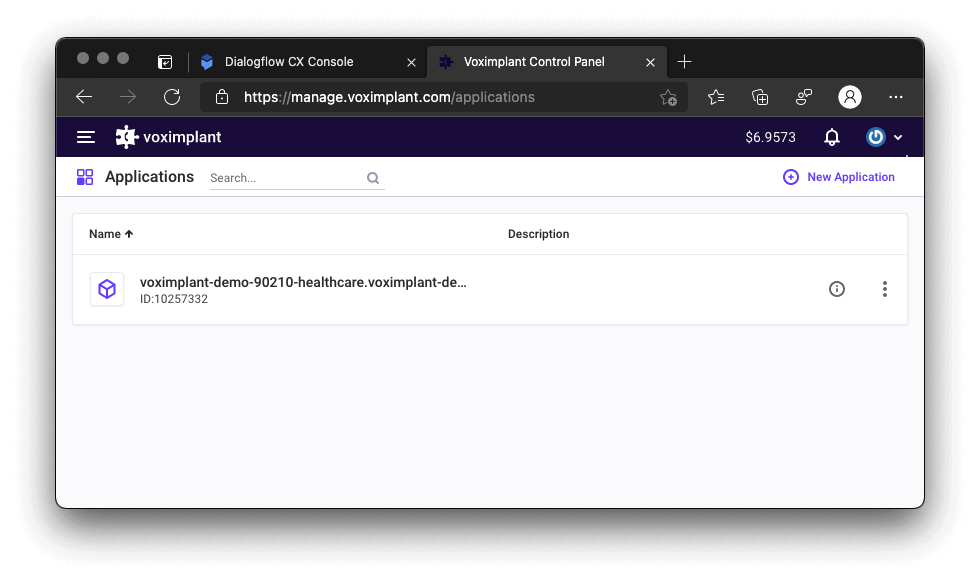

If you click on Manage to go to the Voximplant console and click Applications or visit the Voximplant control panel - Applications directly, you will see your newly created application.

Your application

Subsequent integrations with the same Dialogflow CX agent are linked to the same application. You can always manage your numbers from within Voximplant through the Numbers menu.

Use Dialogflow CX telephony integration features

Copy URL

The Voximplant Dialogflow CX offers a range of telephony interaction capabilities directly integrated into the agent console. These interactions are handled by the automatically generated VoxEngine code during the integration process.

Agent settings

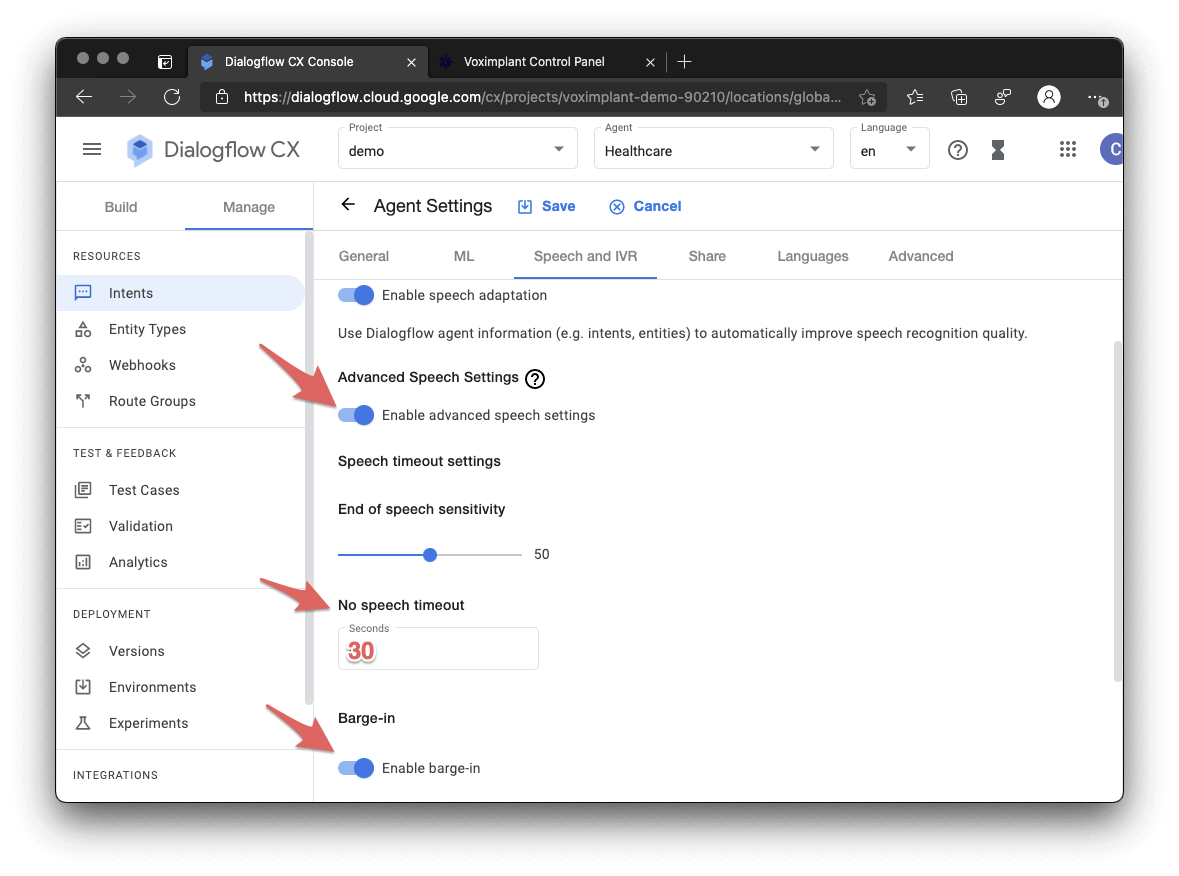

To configure the no speech timeout period and enable barge-in, you should first enable Advanced Speech Settings from the Agent settings screen:

Agent settings

Once enabled, you can modify these settings within each flow and route.

No-speech timeout

Dialogflow CX includes several built-in event handlers for when a user does not respond to a prompt: sys.no-input-default, sys-no-input-1, etc. See the Dialogflow CX Handler documentation for details. These events are triggered after the specified no-speech timeout.

Please note

The no-speech timeout timer begins as soon as a prompt is returned at the beginning of speech synthesis. If the no-speech timeout is too short, it can trigger before the prompt finishes playback. Make sure you set this value to a large enough number that your prompts have time to finish and your users have a chance to respond.

Barge-in

CX also supports stopping playback and matching new intents if a user interrupts a response, known as barge-in. Unlike Dialogflow ES, CX doesn’t handle speech detection or barge-in capabilities and doesn’t require special handling within VoxEngine.

If enabled, intent detection begins as soon as a fulfillment message is played.

DTMF interaction

Dialogflow CX, in conjunction with Voximplant’s Dialogflow Connector, seamlessly handles DTMF natively, eliminating the need for any specific VoxEngine code. The entered DTMF digits are conveniently managed as part of Dialogflow CX Parameters.

Pressed DTMF digits are passed into Dialogflow as text numbers and dtmf_digits_432* where whatever digits we pressed are added after dtmf_digits_.

Use entities to identify DTMF

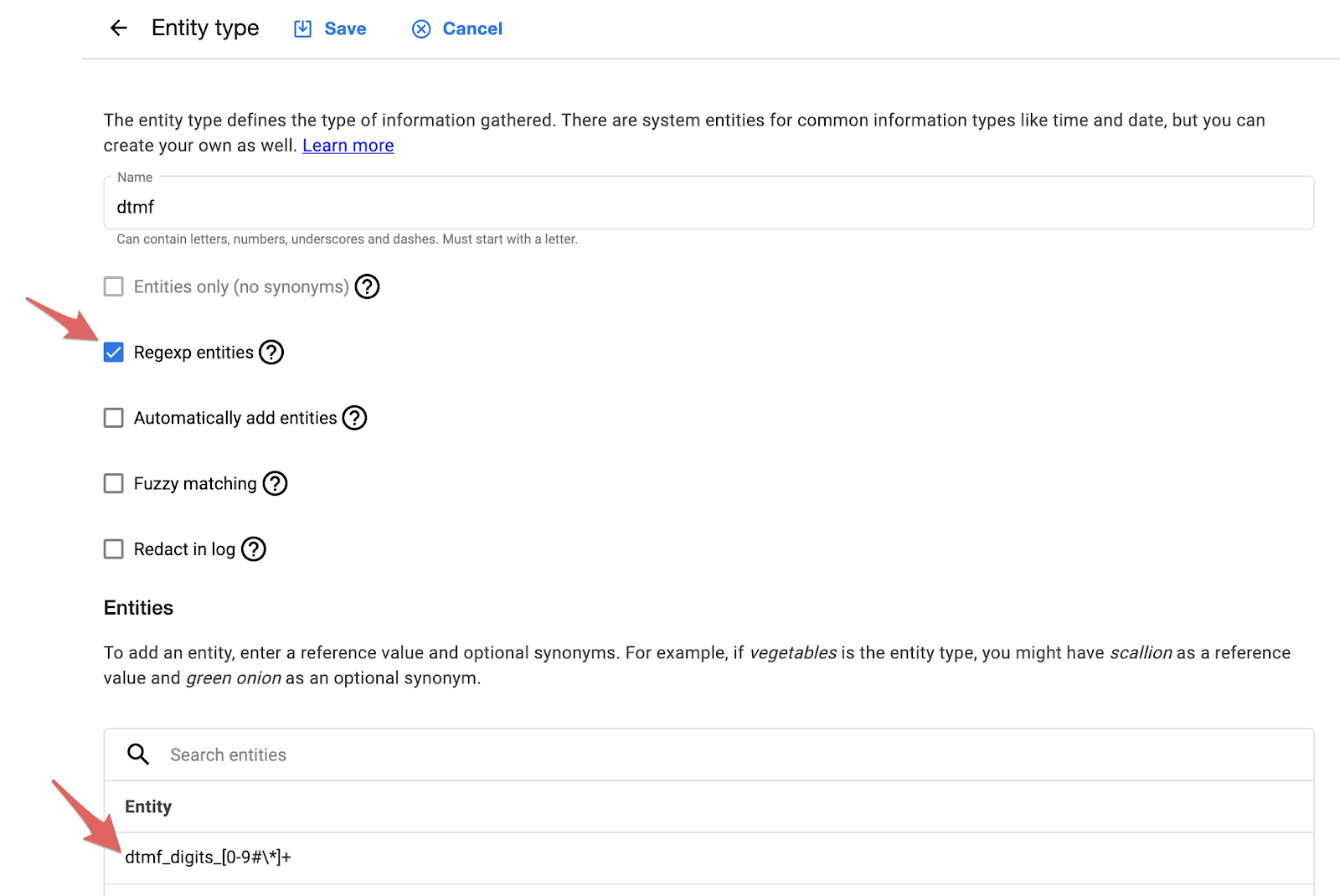

Optionally, you can use an Entity to identify DTMF entries via a regular expression.

Entities

Sending events

You can send supported events from Voximplant's side for Dialogflow CX's event handler to process the event. To send the event, define sendEventin the MarkerReached. Please note that you need to stop the outgoing media to the conversation participant for Dialogflow CX to receive the event. Then use the analyzeContent method to send the event as shown in the code example:

Sending events

Sending events

Parameter setup

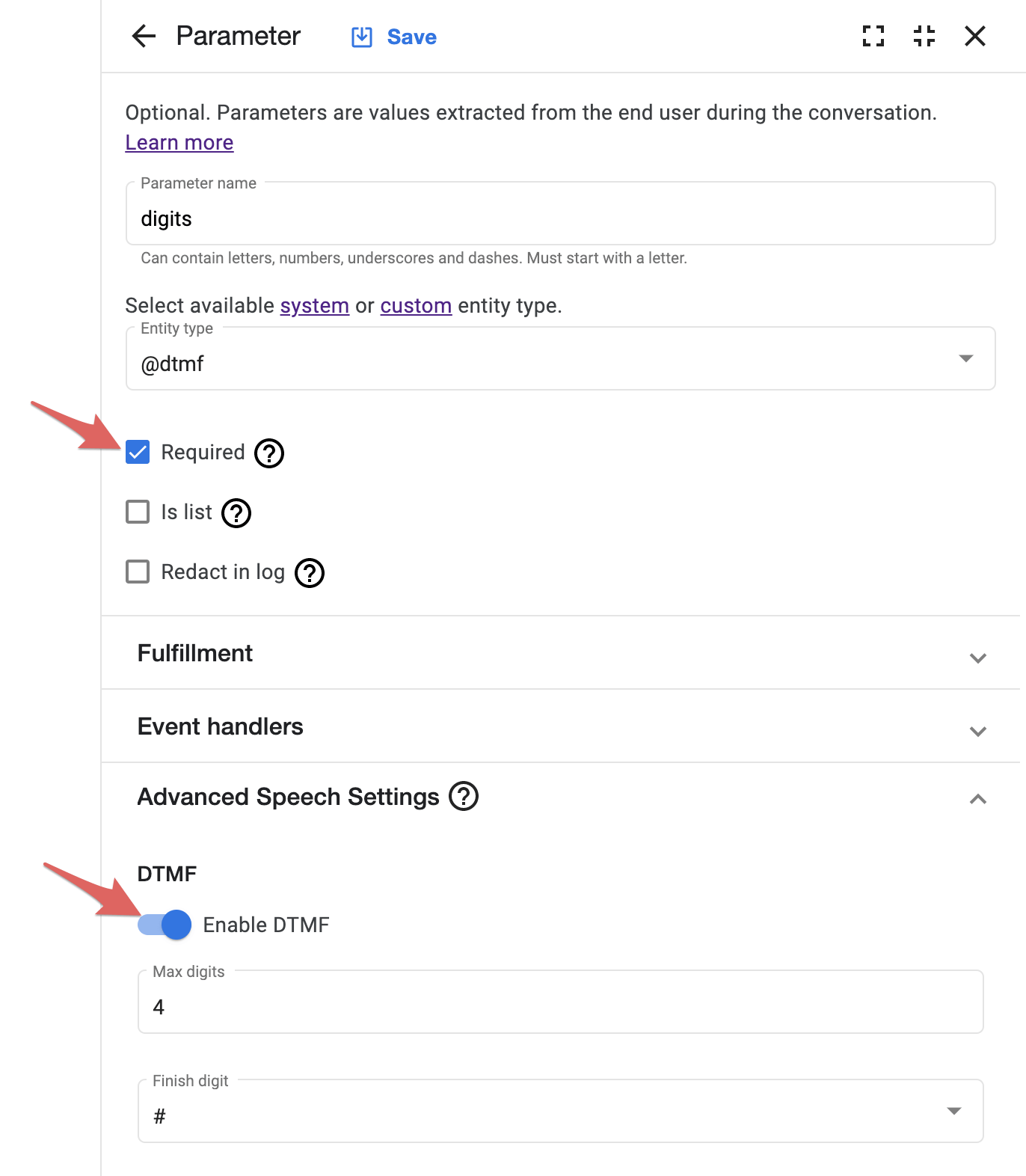

The Dialogflow CX console only handles DTMF entries as parameters. Make sure the parameter type accepts numbers as well as * and # if you use those DTMF keys. Find Enable DTMF under Advanced Speech Settings.

You can specify the maximum number of digits to recognize, and optionally, you can also specify the finish digit.

Parameters setup

See the Dialogflow CX parameter documentation for more information.

Please note

Currently, the DTMF implementation only works if the parameter is marked as required. For handling scenarios like “press 0 for a live agent” and more complex DTMF entries, we recommend implementing a DTMF event handler in VoxEngine to trigger a custom event. See the Modify VoxEngine interaction example further below to see how to initiate custom events.

Sending parameters to Dialogflow CX

To send data to Dialogflow CX, for example, the incoming phone number, use the following code example:

Sending parameters

Sending parameters

Play a recording

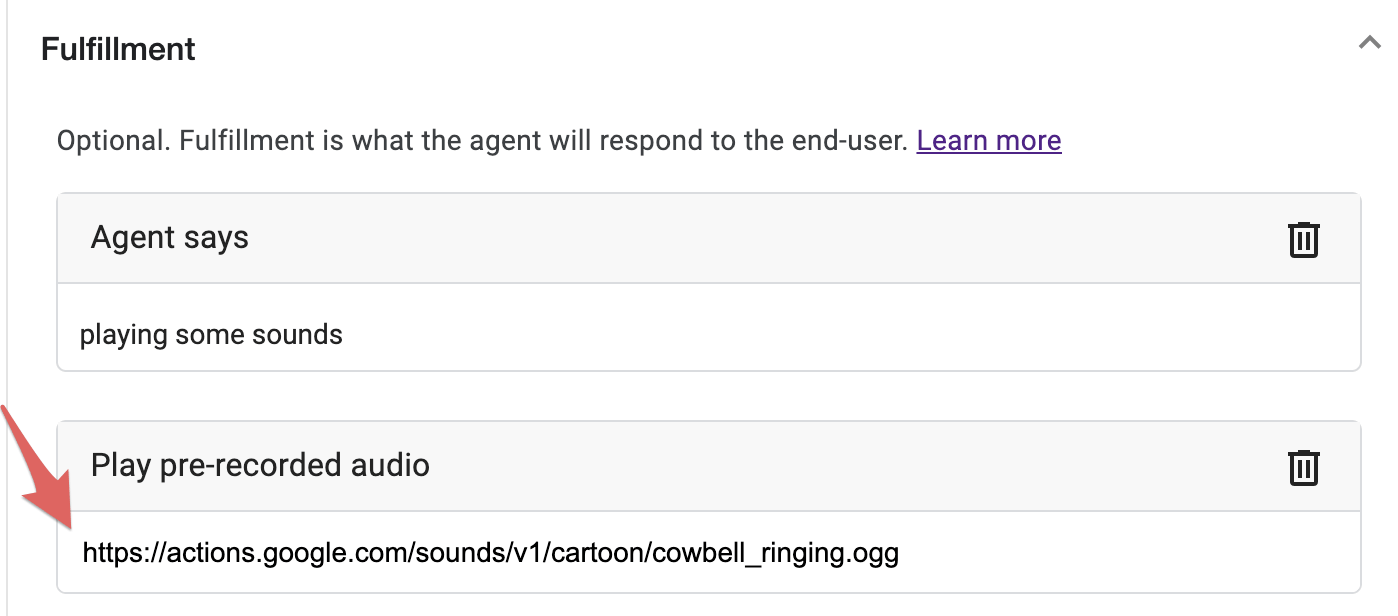

The Dialogflow CX console includes an option to specify an audio URL:

Audio file to play

Voximplant’s Dialogflow Connector seamlessly integrates with CX telephony, enabling the playback of sounds without the need for any additional VoxEngine application logic.

Call transfer

Dialogflow CX console

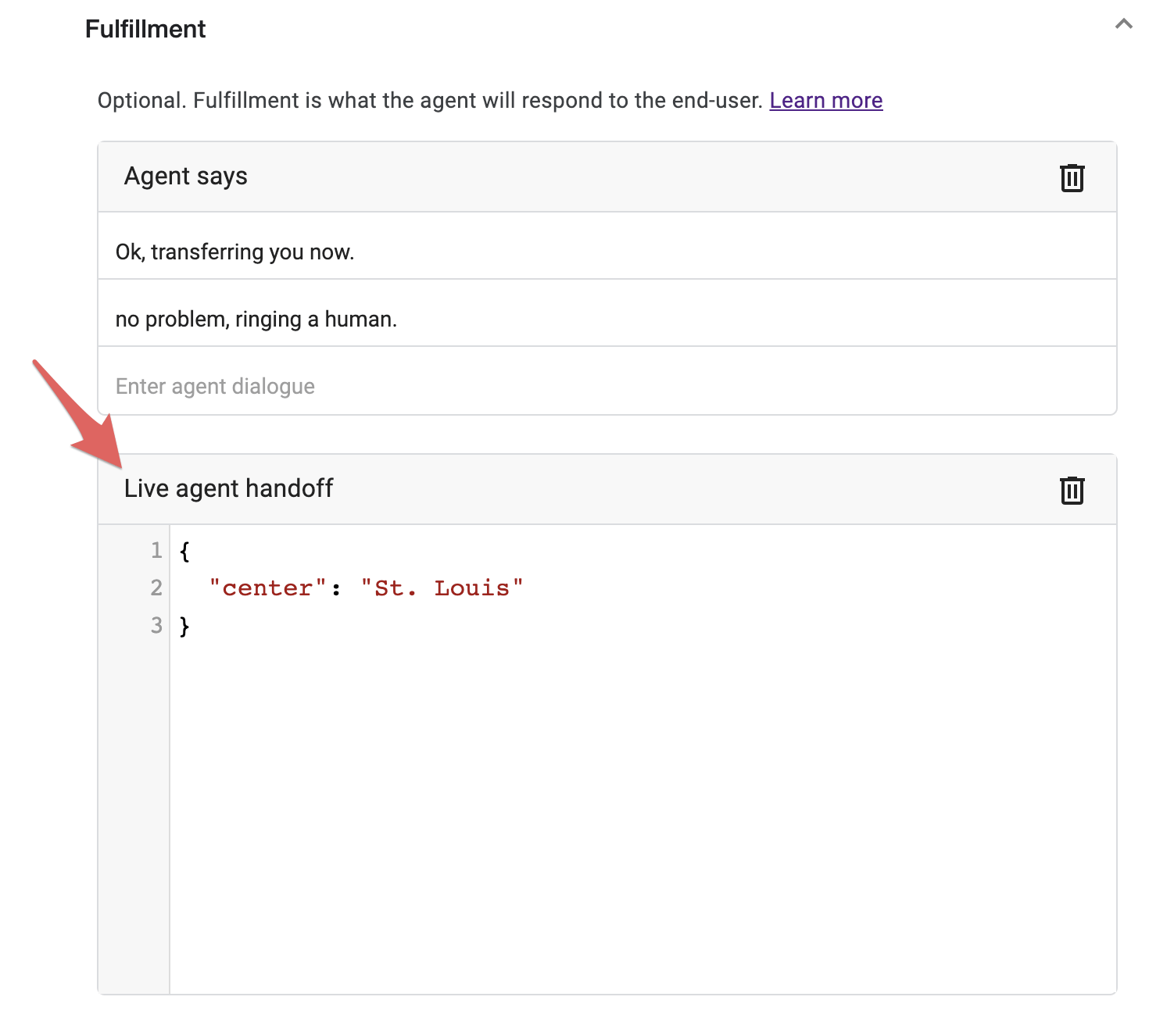

Dialogflow CX offers a Live Agent handoff option within the routes options on each page. By selecting this option, a liveAgentHandoff value is automatically included in the response to Voximplant, enabling the initiation of a call with the live agent.

You can also pass arbitrary data in JSON format along with the request. For instance, you could specify a particular call center or department for proper routing within VoxEngine.

Specific call center

See the Dialogflow CX fulfillment documentation for more information.

How it works in VoxEngine

The default VoxEngine scenario created during the One-click integration already includes the necessary logic to transfer the agent. All you need to do is enter the destination number and the caller ID values.

VoxEngine recognizes a liveAgentHandoff request as follows. The template code simply sets a global transfer variable to true.

Recognize a liveAgentHandoff request

Recognize a liveAgentHandoff request

Then, after the PlaybackFinished event indicates any preceding synthesized speech or audio has been played, this transfer value is checked, an outgoing call is initiated with VoxEngine.callPSTN and finally, the media is connected with VoxEngine.easyProcess. Make sure to enter the destination phone number - such as your call center - and one of your caller IDs as part of the callPSTN function.

Initiate a call

Initiate a call

This code can be modified to incorporate routing logic, facilitate calls through SIP, initiate recording, and perform numerous other functionalities.

Note that the default connector template assumes that the call remains connected to the Dialogflow agent. For an example of how to modify this code, refer to the next section.

Modify VoxEngine interaction

Copy URL

Voximplant, a full-featured Communications Platform as a Service (CPaaS), offers immense flexibility in managing communication with both Dialogflow and telephony networks.

In this scenario, we modify the call transfer behavior to indicate the successful completion of the transfer and subsequently return control to Dialogflow CX in the event of a call failure.

Use VoxEngine events, callbacks, and CCAI methods

Let’s alter the CCAI.Events.Participant.PlaybackFinished code to show how we can monitor the telephony connection and send events to Dialogflow CX:

Monitor the telephony connection

Monitor the telephony connection

We initiate an outgoing call using the standard template VoxEngine.callPSTN, but we also add an event listener that starts the easyProcess only after the outgoing call is connected.

Then we add the optional callback function to send an event via the conversation object returned from the CCAI module, conversation.addParticipant, earlier in the default template. In this case, we send a TRANSFER_SUCCESS event and then use the endConversation function from the template to end the Dialogflow CX connection.

See the Dialogflow CX QueryInput documentation for options and the format for sending query input.

In addition to monitoring the CallEvents.Connected event, we also add a CallEvents.Failed handler, but this time we send a TRANSFER_FAIL event to Dialogflow.

Dialogflow CX setup

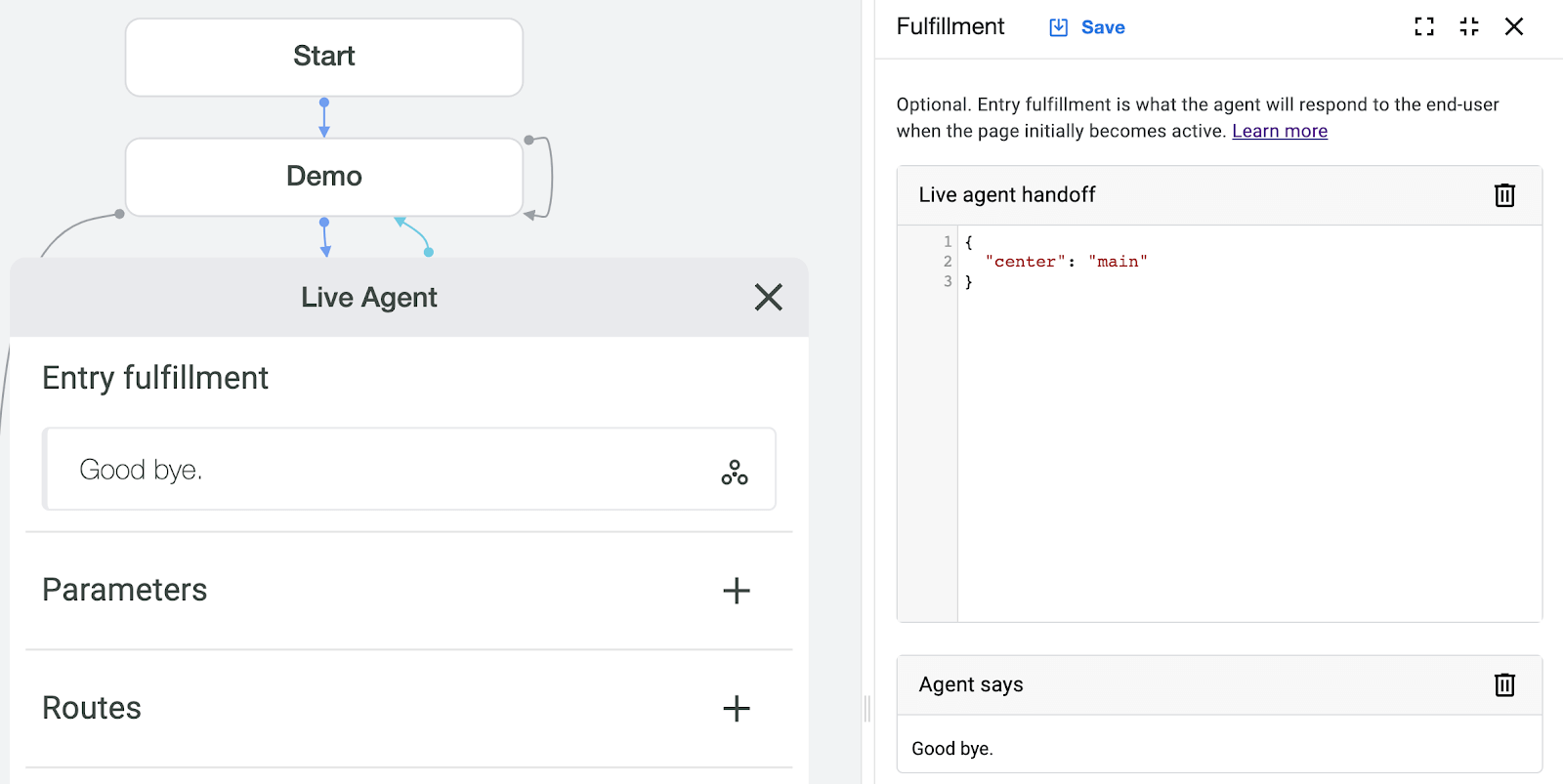

In this scenario, we establish a separate Live Agent page that is loaded after a transfer intent. Configure the Entry fulfillment in a manner similar to the Call Transfer example provided earlier.

Create a distinct Live Agent page

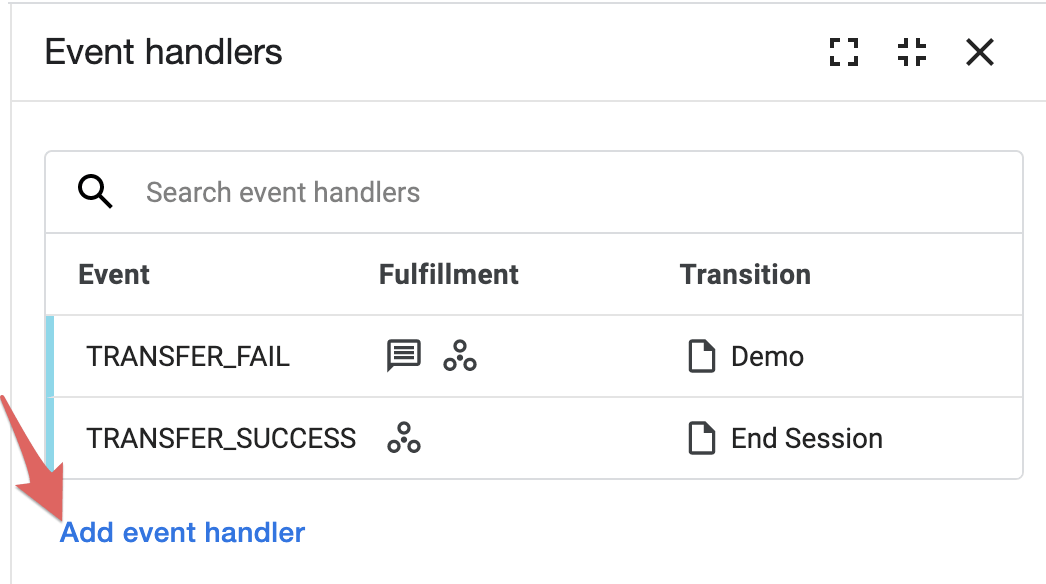

Dialogflow CX enables you to create custom events by navigating to the Event handlers section on your page. Click on the plus sign next to Event handlers or select Add event handler from the Event handlers frame.

Add event handler

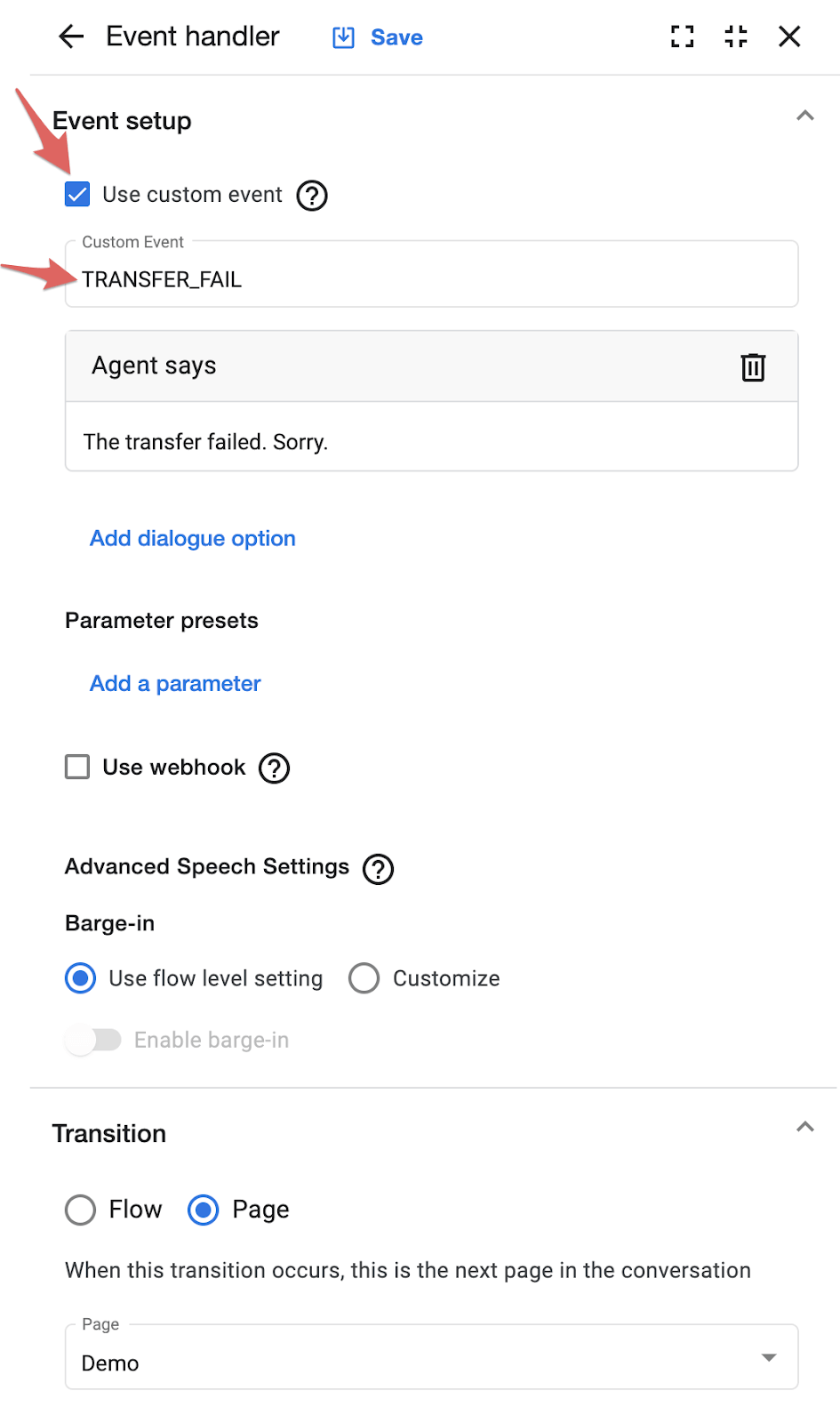

Then click on Use custom event and enter the event name you specified in VoxEngine. Add any fulfillment and specify the transition flow or page.

Set up the event

Make sure to repeat this for each custom event you specify in VoxEngine. TRANSER_SUCCESS might transition to End Session, and TRANSFER_FAILED could go to another page to handle the error or try different Live agent handoff details.

Change your agent’s voice

Copy URL

Dialogflow CX lacks a user interface for selecting your agent’s synthesized voice, unlike Dialogflow ES. However, the voice can be programmatically specified within VoxEngine.

To change the text-to-speech voice, add a synthesizeSpeechConfig object to the replyAudioConfig within dialogflowSettings as part of the conversation.addParticipant configuration object. See the example for the object structure:

Specify the agent's voice setting

Specify the agent's voice setting

Any Google Cloud text-to-speech voice can be used, including different languages. See the list of available Google Cloud text-to-speech voices here.

If you need to use a non-Google voice for any reason, you can process the agent's response event, then read the reply to your customer using Voximplant speech synthesis engine:

Use a non-default voice

Use a non-default voice

Alternatively, you may use the VoiceList.Google equivalents instead to align with other Voximplant-based speech synthesis used in your scenario – i.e. voice: { name: VoiceList.Google.en_US_Wavenet_C.voice }. See the Voximplant’s VoiceList reference documentation for the list of available Google voices.

Outgoing calling

Copy URL

If you want to use this scenario with outgoing calling, you need to remove the AppEvents.CallAlerting code block and create a new AppEvents.Started block. The most important thing here is the callPSTN method that we apply to make a call when the scenario has started. Use the following logic:

AppEvents.Started code block

AppEvents.Started code block

You may wonder what to do with the old AppEvents.Started block. It’s simple: move its contents to the newly created onCallConnected function and delete the old block:

onCallConnected function code

onCallConnected function code

Everything else remains unchanged.

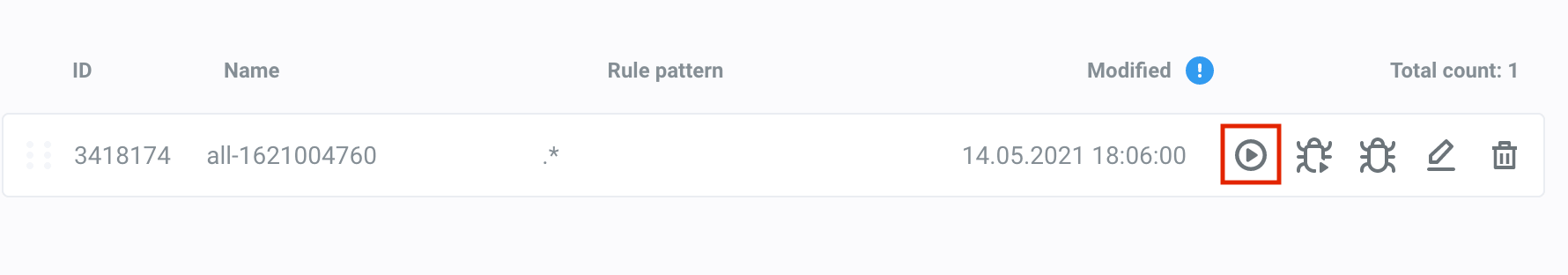

Now, you simply need to initiate the scenario. To do this, navigate to the Rules section and execute the rule linked to your scenario:

Start the scenario

Or use the StartScenarios method of our management API. Do not forget to specify the phone number as script custom data. Otherwise, there is no number to call.

Call lists

Copy URL

Sometimes, you need to make multiple phone calls, and that is when you use call lists.

First, design a CSV file that represents your call list. The data in this file is passed to the VoxEngine scenario as a JSON string that we parse. The CSV file contains the names and phone numbers of the people you want to call.

first_name;last_name;phone_number
Jon;Snow;+16501234567
Daenerys;Targaryen;+16501234568

Now we can modify the scenario so it processes every string of the file and makes calls. Your AppEvents.Started block should look like this (we do not need the AppEvents.CallAlerting block here):

AppEvents.Started for call lists

AppEvents.Started for call lists

The onCallConnected function remains the same as it was for the outgoing call to one person:

onCallConnected for call lists

onCallConnected for call lists

And tell the CallList processor about a successful or unsuccessful call result:

Call results

Call results

The final step is to select the “Call lists” section from your application menu. Create a list (either manually or automatically), upload the CSV file, and launch the list by executing the rule if it’s manual (automatic lists are automatically launched after creation).

The call results are accessible in the Call history section. For more information about call lists, refer to the Call lists for automated calls article.
